Servo Drives
ESTUN SERVOS BASIC SELECTION
About Estun
ESTUN drives sizes and groups are available in order to support any possible system configuration. The selection of ESTUN Servos can start in principle on the base of the communication prococol as shown in the following table. Some Test Benches are available at ATEC Robotics laboratories for system verification. Contact ATEC-ESTUN Technical Support for detailed information, system definition and direct tests on ESTUN products.
In case of frequent start/stop motions (i.e.packing or textile), motors and drives are provided with special treatments to let them suitable.
As shown in the picture below EDC, EDB and ProNet series are classified in power also.
A more detailed selection can be performed through the following table (download original document)
For Drive and motor coding please download: EDB & EDC series product brochure and ProNet series product brochure
About Drives
Drives are divided in three classes. Please contact ATEC Robotics 24h Technical Support for the best configuration. Test servos are available in a few days to test your configuration.
.... EtherCat protocol forthcoming!
EDC series, single phase up to 0.75kW - Very small and capable
Click to download EDC series manual
EDB series, single and three phases, up to 5kW
Click to download EDB series manual

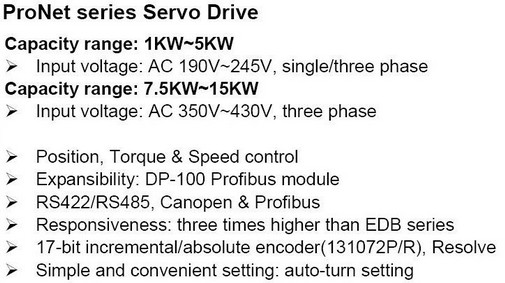

ProNet, up to 15kW for high level applications and power
Click to download ProNet series manual
About Motors
Motors sizes are divided in the following classes based on torque and speed. Please contact ATEC Robotics Technical Support for the best configuration. Test servos are available in a few days, if not in house, to test your configuration.
For motor selection download: EDB & EDC series product brochure and ProNet series product brochure
EMJ, small size up to 1kW (3.18Nm)
For motor selection download: EDB & EDC series product brochure and ProNet series product brochure

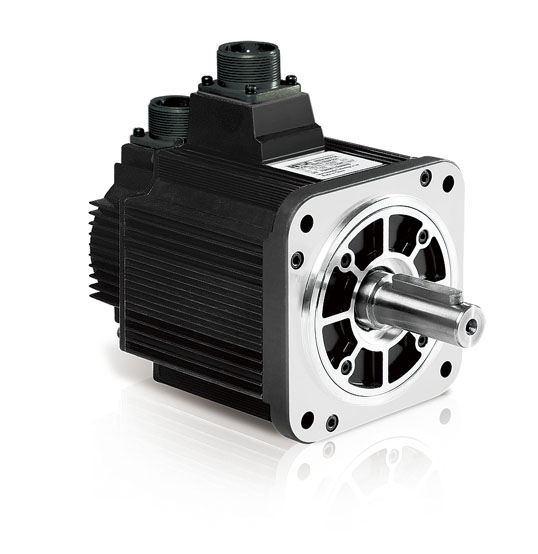

EMG, medium size up to 5kW (23.9Nm)
click to view motor type
For motor selection download: EDB & EDC series product brochure and ProNet series product brochure
EML, medium size up to 4kW (38.2Nm)
click to view motor type
For motor selection download: EDB & EDC series product brochure and ProNet series product brochure
EMB, medium size up to 15kW (95.5Nm)
click to view motor type
For motor selection download: EDB & EDC series product brochure and ProNet series product brochure
